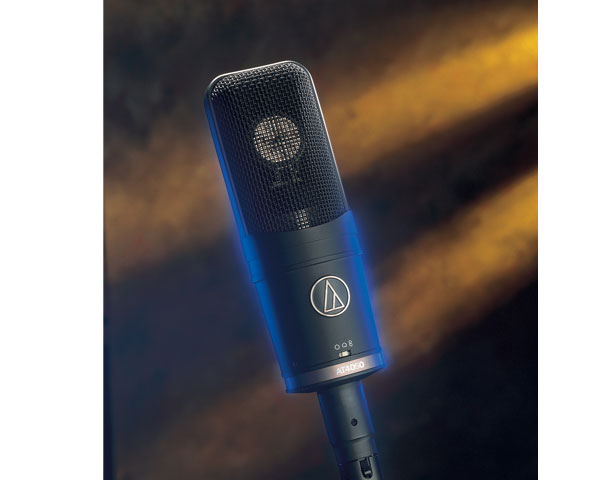

Audio Technica AT4050 SC Multi-pattern Condenser Microphone
Meet the studio condenser that captures every nuance. With three switchable polar patterns, the large-diaphragm Audio-Technica AT4050 exhibits a remarkable combination of qualities: high-SPL capability with transparent and airy uppers/mids complemented by rich low-end qualities. Its dual large diaphragms are gold-vaporized and aged for consistent, outstanding performance. A precision-machined, nickel-plated brass acoustic element baffle provides rock-solid element stability and exceptional sensitivity.
Ideal for studio use and live sound productions with vocals, piano, strings, drum overheads, guitar amps, and more.
Audio-Technica’s AT4050. For performance that legends are made of.
-
Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality
-
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
-
The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
-
Three switchable polar patterns: omni, cardioid, figure-of-eight
-
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
-
State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
-
Switchable 80 Hz hi-pass filter and 10 dB pad
-
Custom shock mount provides superior isolation
SPECIFICATIONS |
|
---|---|
ELEMENT |
Externally-polarized (DC bias) condenser |
POLAR PATTERNS |
Cardioid, |
FREQUENCY RESPONSE |
20-18,000 Hz |
LOW FREQUENCY ROLL-OFF |
80 Hz, 12 dB/octave |
OPEN CIRCUIT SENSITIVITY |
-36 dB (15.8 mV), re 1V at 1 Pa |
IMPEDANCE |
100 ohms |
MAXIMUM INPUT SOUND LEVEL |
149 dB SPL, 1 kHz at 1% T.H.D.; |
NOISE |
17 dB |
DYNAMIC RANGE (typical) |
132 dB, 1 kHz at Max SPL |
SIGNAL-TO-NOISE RATIO |
77 dB, 1 kHz at 1 Pa |
PHANTOM POWER REQUIREMENTS |
48V DC, 4.2 mA typical |
SWITCHES |
Polar selection; |
WEIGHT |
18.0 oz (510 g) |
DIMENSIONS |
7.40" (188.0 mm) long, |
OUTPUT CONNECTORS |
Integral 3-pin XLRM-type |
ACCESSORIES FURNISHED |
AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case |
AUDIO-TECHNICA CASE STYLE |
R1 |
