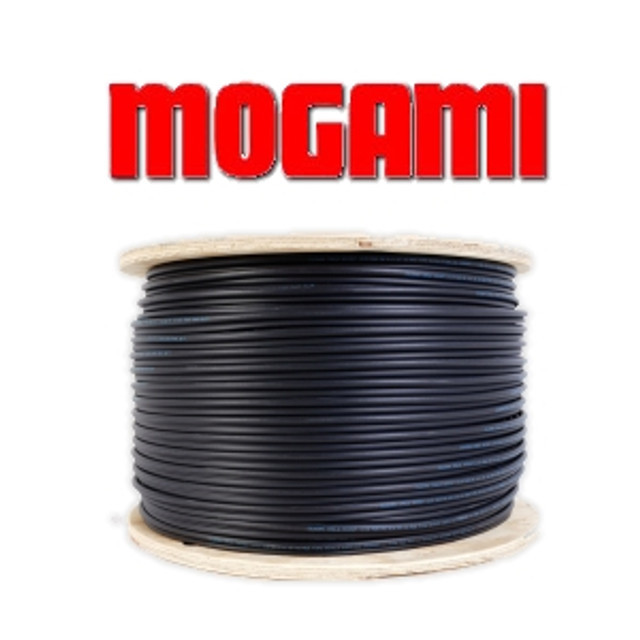

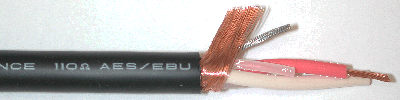

MOGAMI W3080 AES/EBU Cable, 110 Ohm
Available
Price: 2,60€ + VAT
Price (VAT included): 3,17€
All of MOGAMI 110W AES/EBU digital audio cables are designed with flexibility and handy configuration. Many variations are available from regular application type up to long distance application types, from single core up to 12-core types, internal wiring type, and interconnect application types. Strict tolerance control of impedance within ±5% up to ±10% at the maximum.
ELECTRICAL & MECHANICAL CHARACTERISTICS
| Part No. | W3159 | W3228 | W3080 | |
| DC Resistance at 20°C | Inner Cond. | 0.081Ω/m(0.0247Ω/Ft) | 0.1Ω/m(0.031Ω/Ft) | 0.11Ω/m(0.034Ω/Ft) |
| Shield Cond. | 0.024Ω/m(0.0073Ω/Ft) | 0.025Ω/m(0.0076Ω/Ft) | 0.028Ω/m(0.0085Ω/Ft) | |
| Capacitance at 1kHz, 20°C (effective capacitance value between inner twin) |
46pF/m (14pF/Ft) |
53pF/m (16pF/Ft) |
46pF/m (14pF/Ft) |
|
| Inductance | 0.8µH/m (0.24µH/Ft) | 0.8µH/m (0.24µH/Ft) | 1.0µH/m (0.31µH/Ft) | |
| Characteristic Imperdance | 110Ω±10% | 110Ω±5% | 110Ω±5% | |
| Attenuation (6MHz) | 0.065dB/m (0.020db/Ft) |
0.069dB/m (0.021db/Ft) |
0.069dB/m (0.021db/Ft) |
|
| Phase Constant (6MHz) | 0.17rad/m | 0.20rad/m | 0.20rad/m | |
| Electrostatic Noise* | 50mV Max. | |||
| Electromagnetic Noise at 10kHz* | 2.0mV Max. | |||
| Microphonics** | 60mV | 40mV Max. | 40mV Max. | |
| Voltage Breakdown | Must withstand at DC 500V/15sec, 20°C | |||
| Insulation Resistance | 10000 MΩ × m Min. at DC 250V, 20°C | |||
| Flex Life* | 2,900 cycles | 33,000 cycles | 10,000 cycles | |
| Tensile Strength | 303N | 441N | 343N | |
| Emigration | Non-Emigrant to ABS resin | |||
| Applicable Temperature | -20°C‾ +60°C(-4°F‾ +140°F) | |||
| Standard | AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 |
AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 UL AWM 2623, 30V, 80°C, VW-1 |
AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 |
|
