SCHOEPS CMC 1 Miniaturized Colette Microphone Amplifier, 12-48V PH

•
•
•
•
•
•
•

Schoeps Colette Microphone Amplifier miniaturized very high SPL..

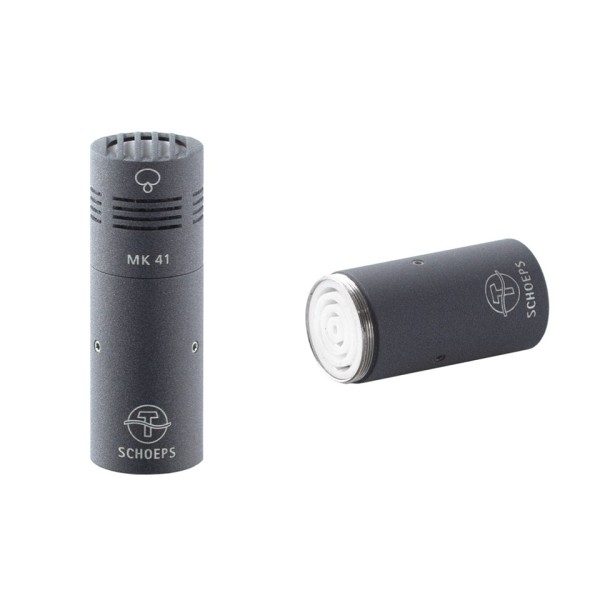

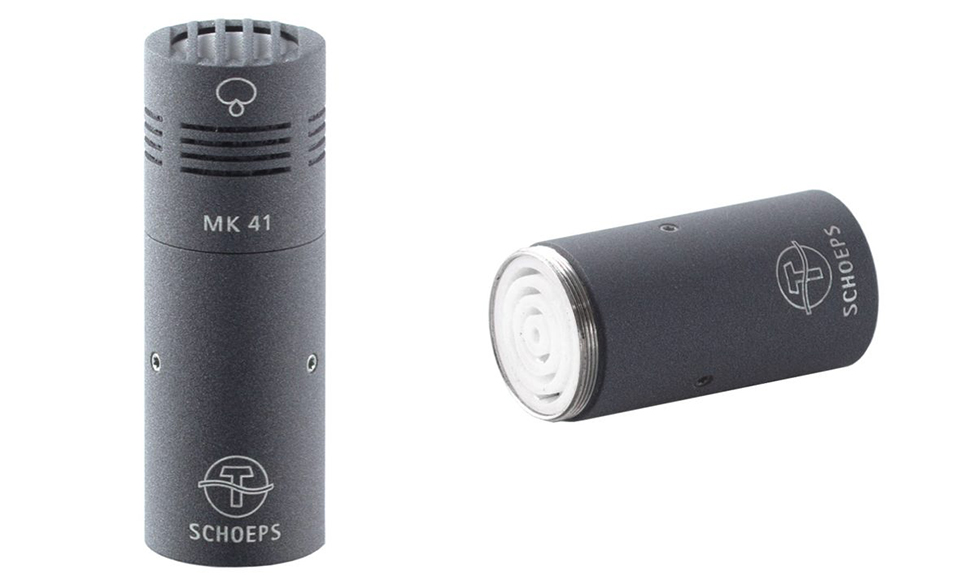

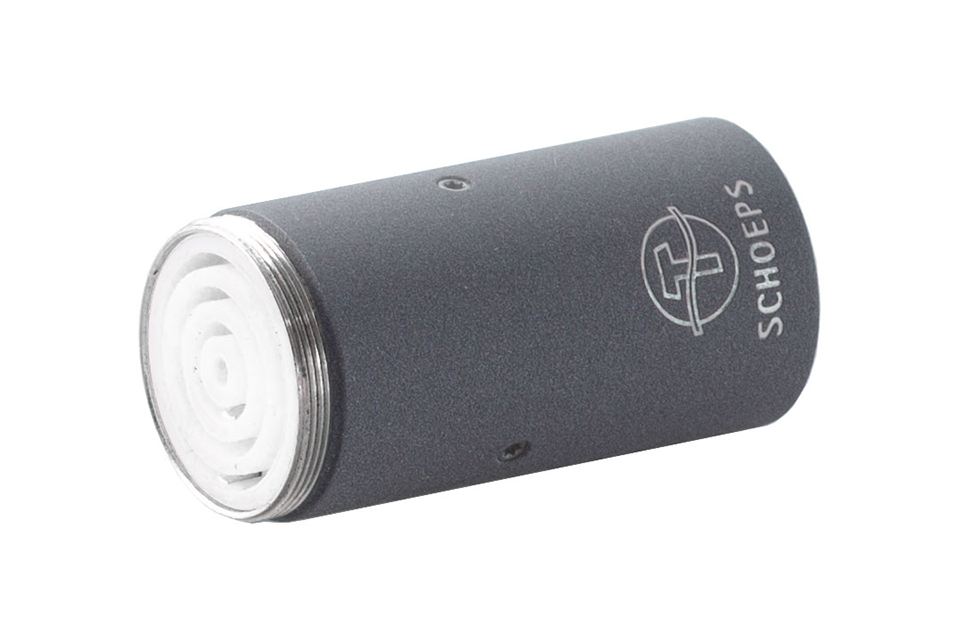

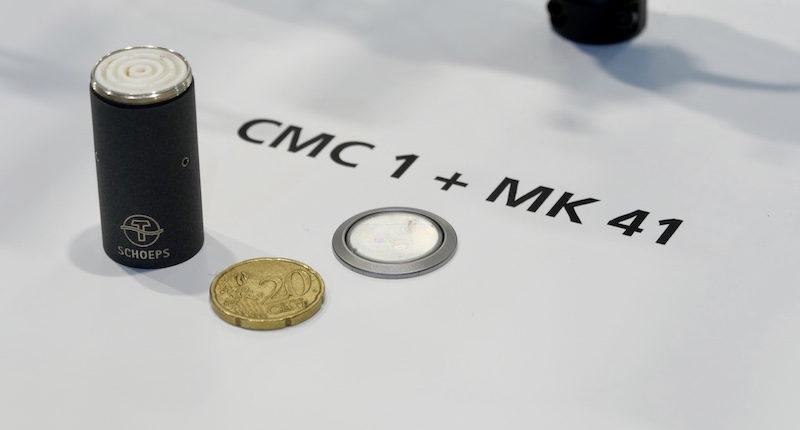

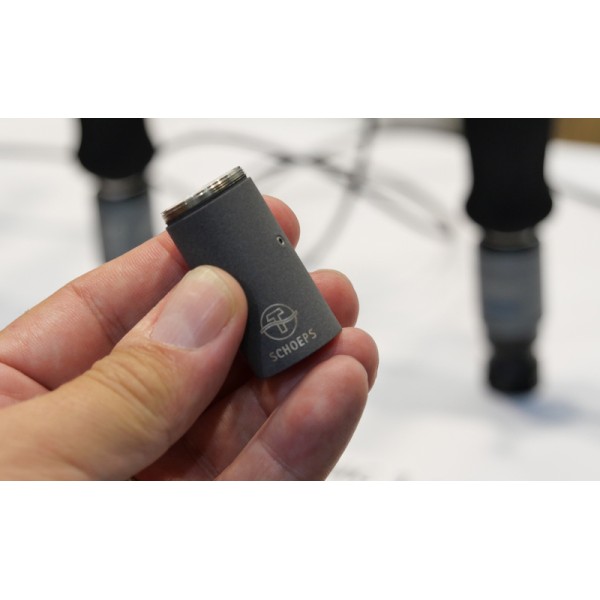

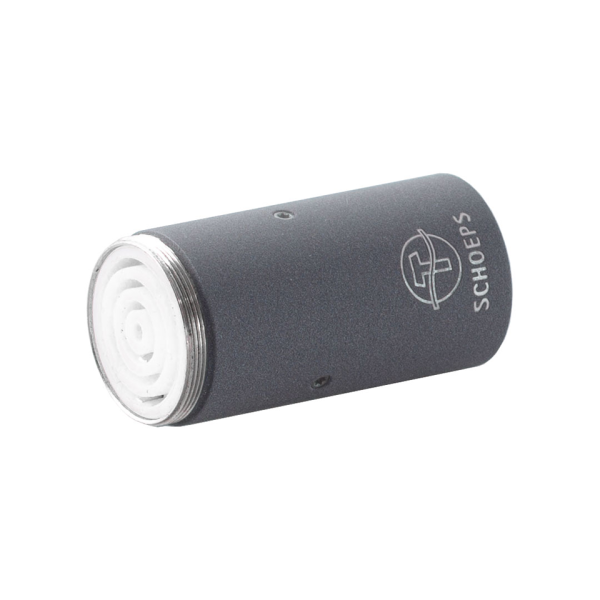

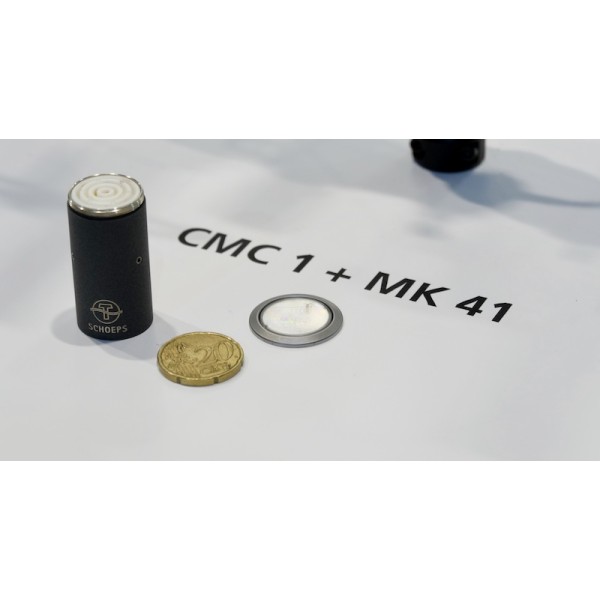

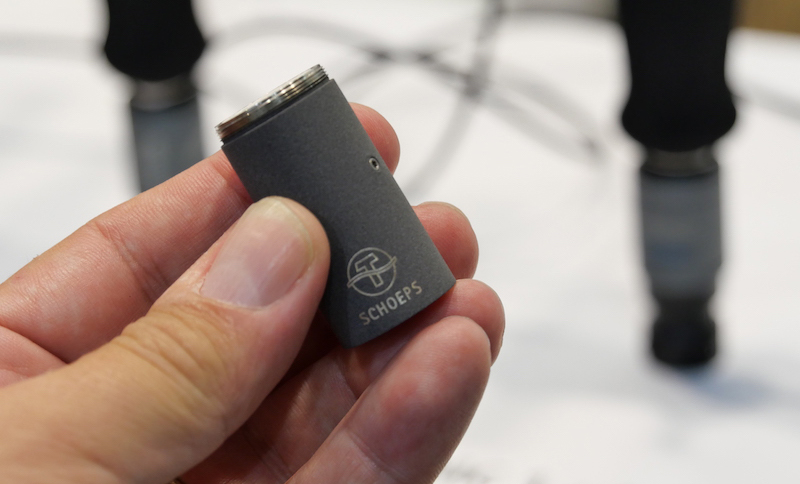

The CMC 1 is our new, small Colette microphone amplifier, about one-third the size and 40% lighter than the CMC 6. It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.

At SCHOEPS, “uncompromising miniaturization” means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have been achieved:

• High maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
• Very low current consumption: 2.0 mA at 48 Volts
• Operates on 48 V or 12 V phantom power

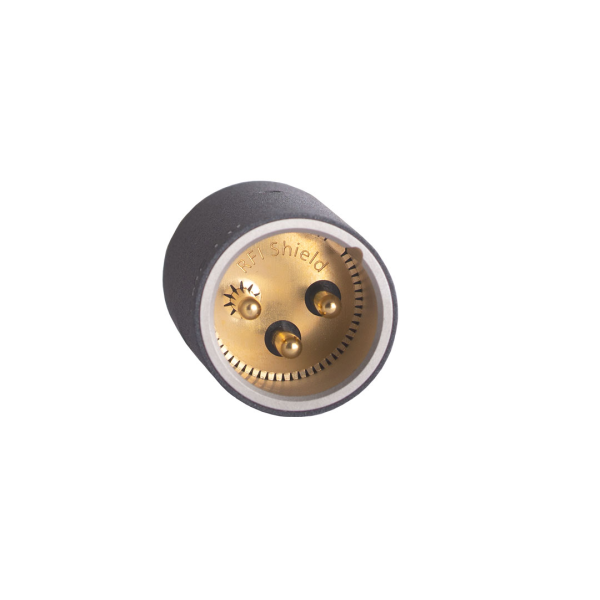

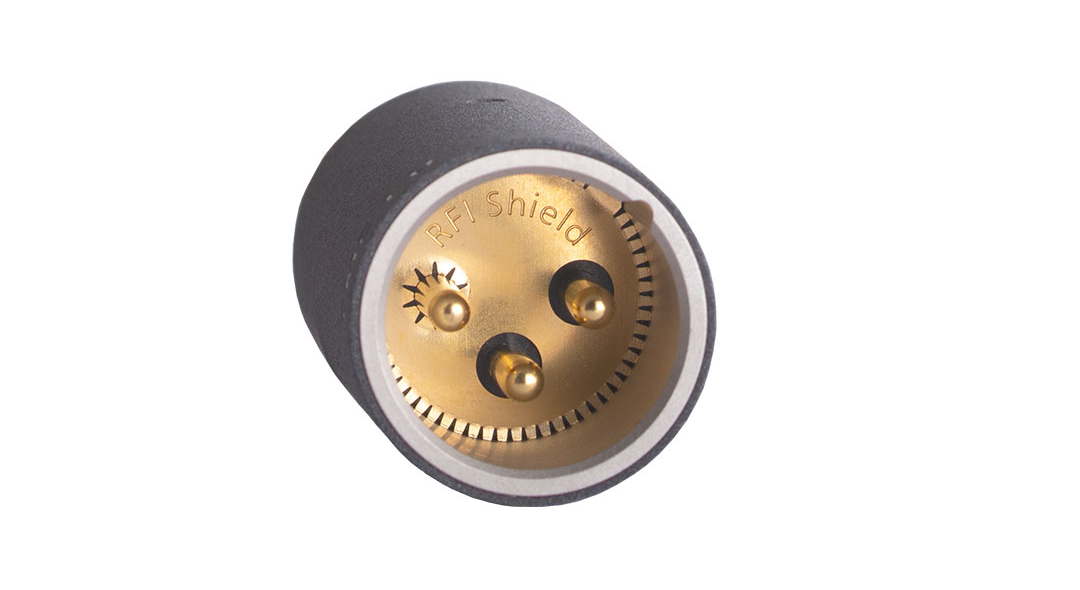

• Very high immunity from RF interference with the SCHOEPS RFI Shield

Specifications:

Frequency Range	20 Hz-20 kHz
Maximum output voltage	1,8 V (5 dbV) with 1 kΩ load
Maximum sound pressure level (THD < 0.5 %)	135 dB-SPL (P48) with MK 4 131 dB-SPL (P12) with MK 4
Low cut filter	20 Hz, 12 dB/oct
Output impedance	50 Ω +/- 1 Ω (8 Hz - 50 kHz)
Minimum recommended load impedance	1 kΩ
Common mode rejection ratio (at 1 kHz)	> 55 dB
Maximum cable length	> 400 m / ~1300 ft
SCHOEPS RFI Shield	Yes
Powering standard / Valid range	P48 / 30-52 V P12 / 11-13 V
Current consumption	2 mA (P48) 3 mA (P12)
Output	XLR-3M, analog, 1 channel
Length	39 mm / ~1.5"
Diameter	20 mm / 0.8"
Weight	36 g / 1.3 oz
Surface Finish	matte gray (g) or custom color
