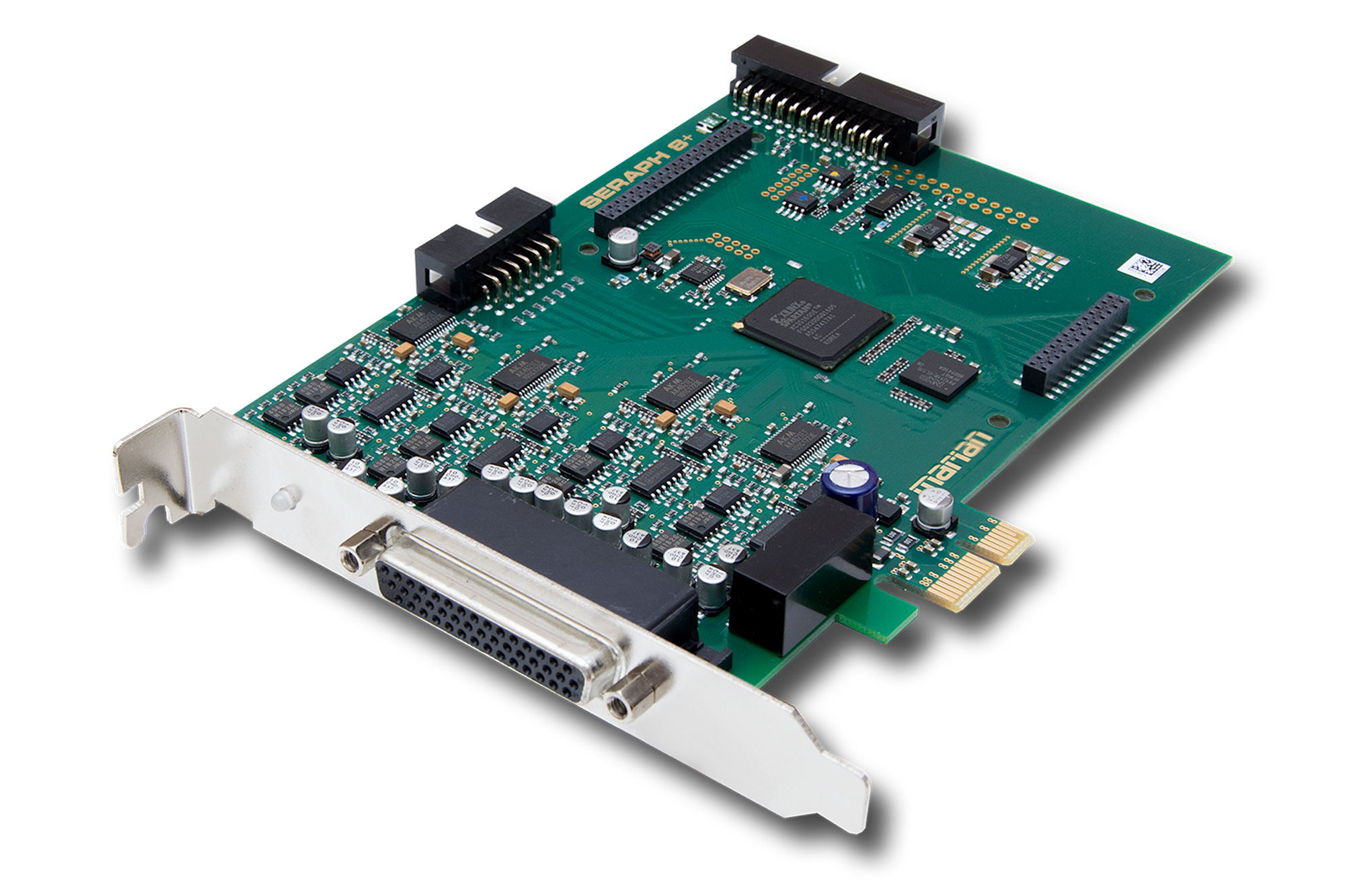

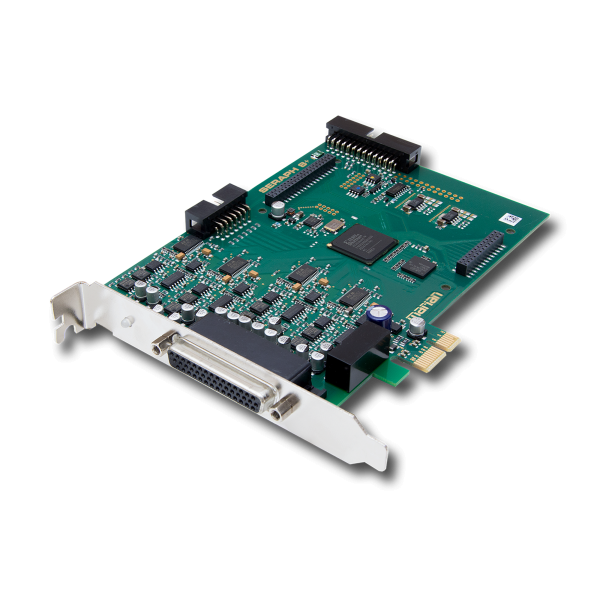

MARIAN SERAPH 8 MKII scheda audio PCIe 8 Analog I/O
EAN: 4260097610124 Scheda Audio Marian Seraph 8 MKII con connettori XLR
Either symmetrical TRS or XLR connections ensure the seamless integration of this 16-channel sound system into the studio. Master keyboards and external sound generators can also be connected to the 2 MIDI inputs and outputs of the MWX version. With resolutions of up to 24 bits and 192 kHz, real-time DSP functions and the option of cascading multiple systems, the Seraph 8 MKII is a sustainable investment for every digital studio.
Real time mixing and EQ
Each input signal of the sound system can appear on up to 8 mixed sums and be played back without delay via any number of outputs. The BEAST mixer also mixes playback signals from a DAW without latency. Up to 4 parametric EQs are available in the hardware for sound processing for each signal.
Expansion options
If several Seraph 8 are installed in one computer, they appear as a combined sound system compared to an ASIO application. Depending on the performance of the computer, 128 high-quality analog channels can be implemented in this way. In the Beast Mixer, up to 8 audio signals can also be exchanged with other Seraph or Clara sound systems (e.g. Clara D ) and thus also integrated for use with ASIO.
Fast and reliable multi-client driver suite
The continuously developed driver includes multi-client support for ASIO 2.2 as well as multi-channel WDM audio / WASAPI with the lowest latencies in all software environments. This ensures that several audio applications can access the sound system at the same time via the same or different driver interfaces.
Powerful and future-proof
Every MARIAN sound system is a quality product developed 100% in Germany and manufactured in accordance with DIN EN ISO 9001. This is guaranteed by its 5-year warranty.
Properties
- 24 bit / 192 kHz resolution
- 8 analog inputs and outputs (16 channels)
- Balanced XLR or TRS connections
- Beast DSP mixer with EQ
- Cascadable (via TDM SyncBus)
- 2 MIDI inputs and outputs (MWX version)
- Wordclock / Superclock input and output (MWX version)
- Compatible with common Thunderbolt PCIe adapters
